Waterproof Automotive Sealed APEX 2.8 Series 14 Position Engine Plug Wire Connector Harness with 2 Years Warranty
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | Edgarcn |
| Certificazione: | ISO9001/TS16949 IPC620 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10000 |
|---|
|
Informazioni dettagliate |
|||
| Tipo di connettore: | FCI 54201416 PA66 Connettore impermeabile | Dimensione terminale: | 2,8 mm |
|---|---|---|---|
| Numero di posizioni: | 14 | Materiale abitativo: | PA (poliammide) |
| Intervallo di temperatura: | -40 ° C a +125 ° C. | Contatta la forza di ritenzione: | > 90 n |
| Forza di inserzione del contatto: | <15 n | Forza di accoppiamento del connettore: | <90 n |
| Pece: | 5,25 x 6,40 mm (doppia riga) | Opzioni di colore: | Nero, grigio chiaro, grigio scuro, naturale |
| Compatibilità terminale: | Apex 2,8 mm Terminali femminili/maschili | Valutazione impermeabile: | Sigillato |
| Serie: | Apex 2.8 | CONNETTORE GENERE: | Opzioni abitative femminili/maschili |
| Composizione materiale: | Plastica, metallo, gomma | ||
| Evidenziare: | APEX 2.8 Series Engine Plug Wire Connector,14 Position Automotive Wiring Harness,2 Years Warranty Cable Assembly |
||
Descrizione di prodotto

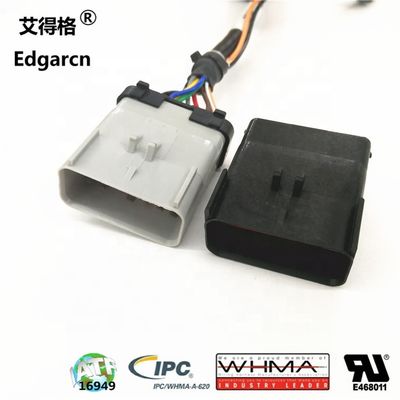

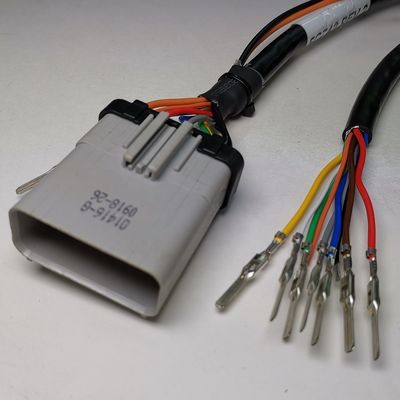

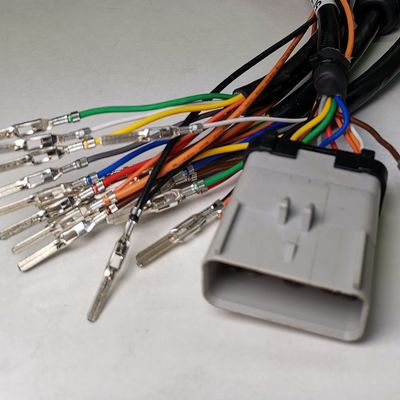

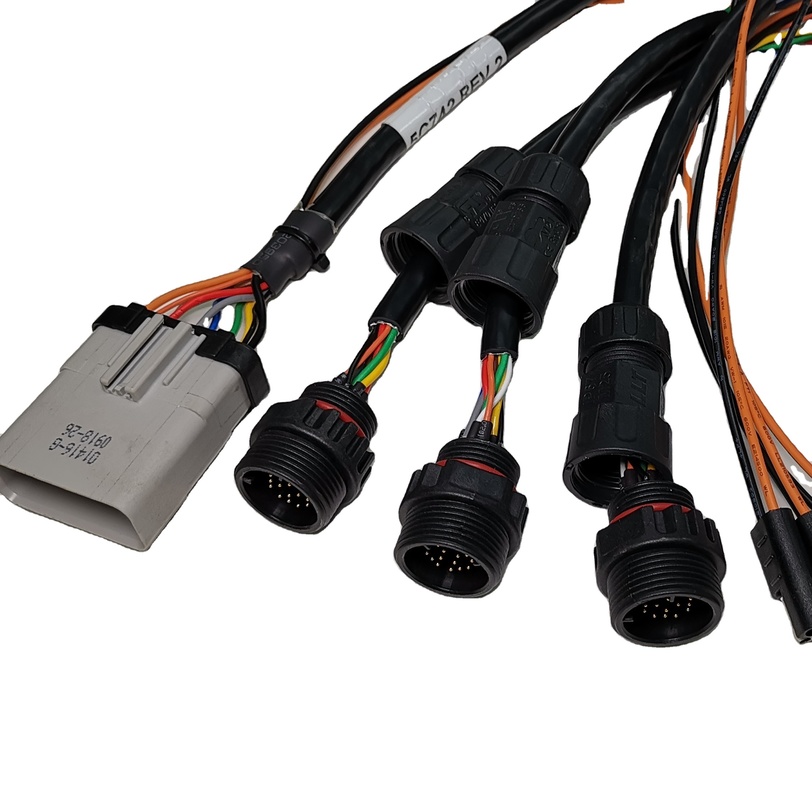

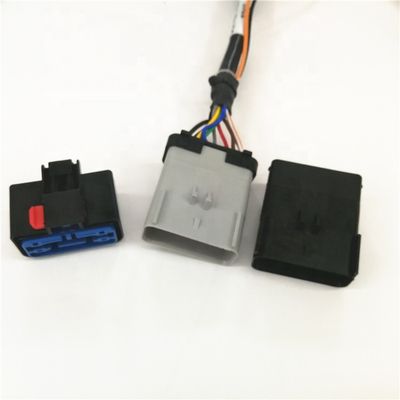

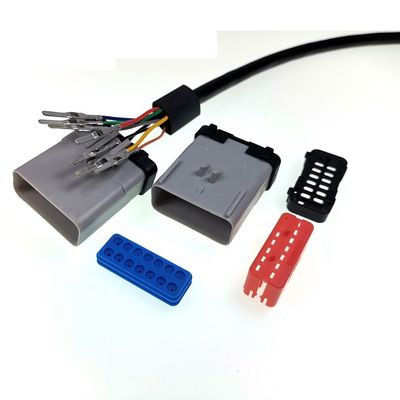

Waterproof Automotive Sealed APEX 2.8 Series 14 Position 54201416 Custom Engine Plug Wire Connector Harness Cable Assembly
Product Description
RP1226 Cable Assembly - FCI 54201416 Delphi PA66 waterproof connector with wire harness and cable assembly.
Custom Engine Sensor Plug Wire Connector Harness Cable Assembly specifically designed for Ford vehicles.
Key Features
- Waterproof automotive sealed Delphi FCI APEX 2.8 series connector
- 14 position grey connector with crimping cable assembly
- Valve cover glow plug connector pigtail wire harness
- FCI connector engine wire harness
- Instrument panel and cockpit connectors
- Coupling connectors with Apex 2/3/4/6/10/14 way coupling housings
OE Numbers
| Direct OE Cross | Manufacturer |
|---|---|
| 54201416 | FORD MOTOR COMPANY |
* This type harness kits for display only, will not sell out
Technical Specifications
- Temperature range: -40°C to +125°C
- Contact retention force: > 90 N
- Contact insertion force: < 15 N
- Connector mating force: < 90 N
- Housing material: PA (Polyamide)
- Usable terminals: Apex 2.8 mm female/male terminals
Packaging & Lead Time
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Packaging details can be customized by client specification. International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS.
Frequently Asked Questions
Q: Can you help to design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When will you start to help design?
A: We sketch simple solutions for initial discussion. After quotation and order placement, we begin detailed drawings and confirm with the client.
Q: What if quality issues occur?
A: Our quality and engineering team responds to quality issues within 72 hours, committed to long-term customer relationships and service excellence.
Q: Do you have standard products to reduce lead time?
A: Yes, we have over 1000 sets of molds and more than 5000 products developed over 20 years of specialization in wire harnesses.
