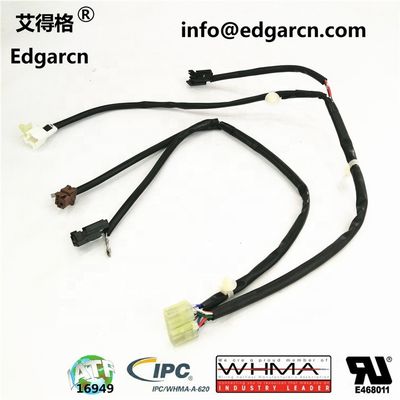

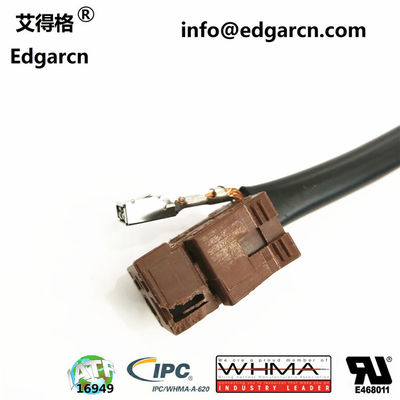

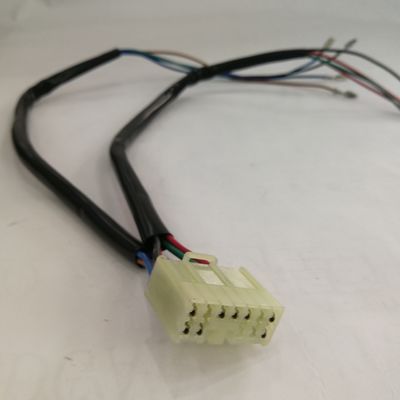

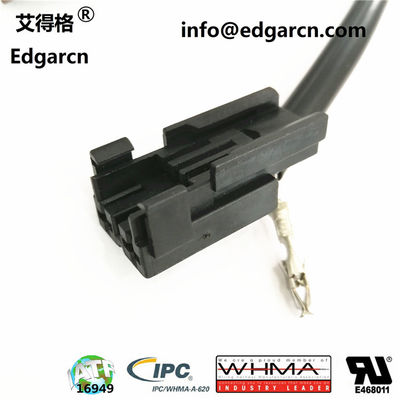

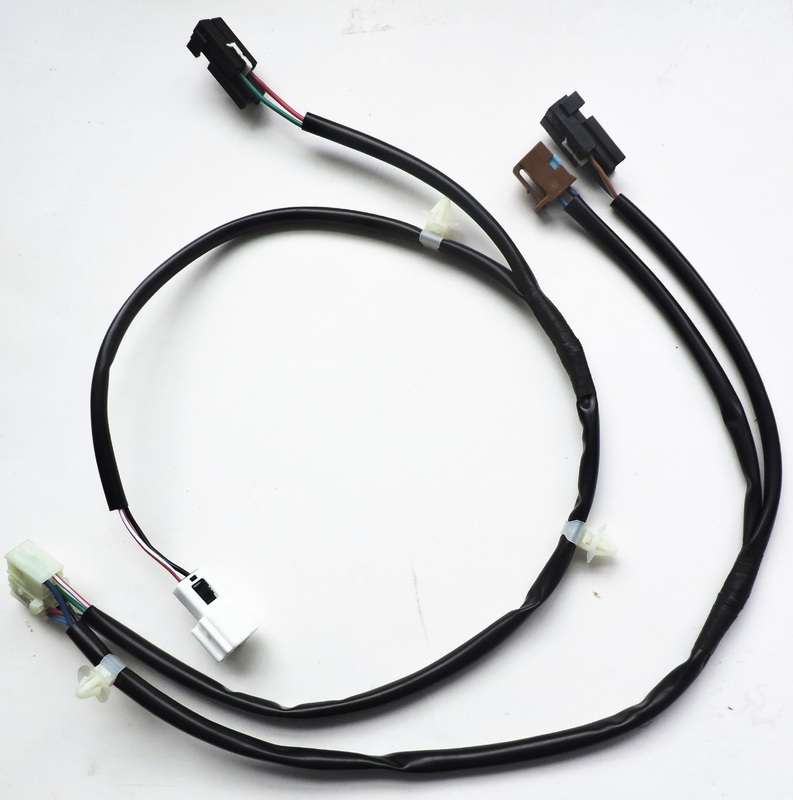

Power Seat Wiring Harness with J1939 Male To J1962 Female 6pin Deutsch Connector IP68 Waterproof for Heavy-Duty Vehicles
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | Edgarcn & EdgarWireHarness |
| Certificazione: | IATF16949 TS16949 UL |
| Numero di modello: | Arnesi di cablaggio del sedile elettrico |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10000 |
|---|---|
| Prezzo: | $8.88-10 |
|
Informazioni dettagliate |
|||
| Tipo di connettore: | Deutsch J1939 HD-16-9-1939S-P080 HD-10-9-1939P-P080 | Lunghezza del cavo: | personalizzato |
|---|---|---|---|
| Opzioni di colore: | ROSSO, NERO, BLU, VERDE | Temperatura operativa: | -40 da ℃ a +125 ℃ |
| Resistenza alle vibrazioni: | 20 g a 10-2000Hz per 2 ore | Valutazione impermeabile: | IP68 |
| profondità di immersione: | 1,2 metri per 24 ore | Tipo di terminale: | 1060-16-0122 |
| Tipo di filo: | UL 1007 18#, UL 1007 16# | Conservazione dei contatti: | 20 libbre |
| Tensile della piega: | > 20 libbre (18#),> 25 libbre (16#) | Modello di fallimento: | Danno a filo, herchinet rotto |
| Materiale del connettore: | Gomma termoplastica, sigillata | Conteggio dei perni: | 9 pin (J1939), 6 pin (J1962) |
| Serie di connettori: | Serie EDG-HD | ||
| Evidenziare: | J1939 Male To J1962 Female 6pin Deutsch Power Seat Wiring Harness,IP68 Waterproof Automotive Wiring Harness,Operating Temperature -40℃ to +125℃ Vehicle Cable |
||
Descrizione di prodotto
Power Seat Wiring Harness Truck Vehicle Cable
J1939 Male To J1962 Female 6pin Deutsch Harness for Truck
Model Numbers: D-16-9-1939S-P080, HD-10-9-1939P-P080
Product Description
The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, designed for faster, easier, trouble-free assembly in heavy-duty industries including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud, and other contaminants.
Product Specifications
- Operating temperature range: -40℃ to +125℃ with no cracking, chipping, or leaking after 20 test cycles
- Withstands sinusoidal vibration levels of 20 G's at 10 to 2000Hz in three mutually perpendicular planes for 2 hours without damage
- IP68 rating - waterproof and withstands immersion under 1.2 meters of water for 24 hours
Force Testing Results
EDG-HD10-9-1939P-P080
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
EDG-HD16-9-1939S-P080
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging and Shipping
Packaging details can be customized according to client specifications.
Standard Lead Times
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS. Customers may choose air, sea, or other shipping methods. Payment for samples/mass products required before delivery (amounts above $5000 USD negotiable).
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
Q: When will you start to help design?
A: We provide initial sketches for discussion. After order confirmation, we create detailed drawings for client approval.
Q: What if quality issues occur?
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
Q: Do you have standard products to reduce lead time and tooling costs?
A: Yes, we maintain over 1000 molds and 5000+ products developed through 20+ years of wire harness specialization.
