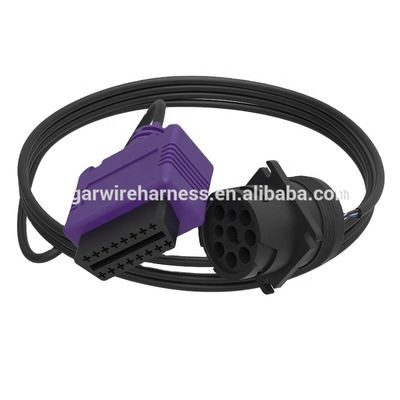

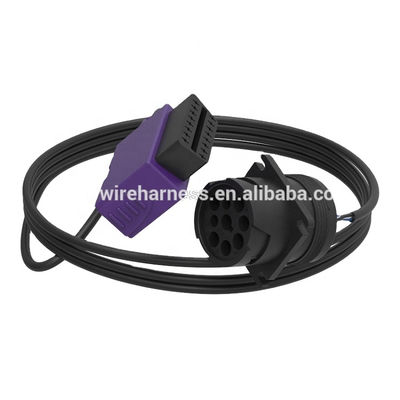

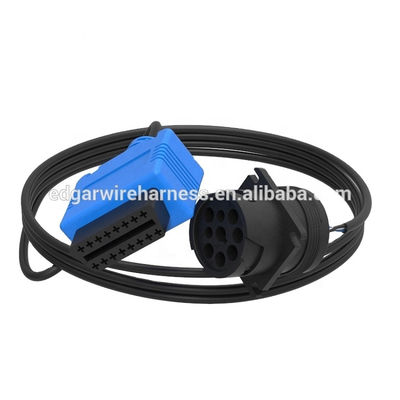

Durable 9-Pin Deutsch Connector J1939 to OBD2 Adapter Cable with IP68 Waterproof and Customized Length for Heavy-Duty Use
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10.000 |
|---|---|
| Prezzo: | 10 |
|
Informazioni dettagliate |
|||
| Modello n.: | J1939 e J1962 | Connettore b: | 8 9 16 pin |
|---|---|---|---|
| Connettore a: | D-SUB 9 pin | Lunghezza: | Personalizzato |
| Marchio connettore: | Deutsch J1939 HD-16-9-1939s-P080 | Temperatura operativa: | -40 a +125°C |
| Resistenza alle vibrazioni: | 20 g a 10-2000Hz | Valutazione IP: | IP68 |
| Profondità impermeabile: | 1,2 metri per 24 ore | Tipo di terminale: | 1060-16-0122 |
| Tipo di filo: | UL 1007 18#/16# | Conservazione dei contatti: | 20 libbre |
| Tensile della piega: | >20 libbre (18#) / >25 libbre (16#) | Modello di fallimento: | Danno al filo/Gommino rotto |
| Capacità produttiva: | 100000 pezzi/pezzi al mese | ||
| Evidenziare: | Durable 9-Pin Deutsch Connector J1939 to OBD2 Adapter Cable,IP68 Waterproof J1939 to OBD2 Adapter Cable,Customized Length Diagnostic Cable |
||
Descrizione di prodotto
The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector designed for faster, easier, trouble-free assembly in heavy-duty industries including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40°C to +125°C (no cracking, chipping, or leaking after 20 test cycles)
- Withstands sinusoidal vibration levels of 20 G's at 10-2000Hz in three mutually perpendicular planes for 2 hours
- IP68 waterproof rating - withstands immersion under 1.2 meters of water for 24 hours
| Model | Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|---|
| EDG-HD10-9-1939P-P080 | 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| EDG-HD10-9-1939P-P080 | 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| EDG-HD16-9-1939S-P080 | 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| EDG-HD16-9-1939S-P080 | 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging details can be customized according to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Estimated Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Shipping options include international express (DHL, UPS, FedEx, TNT, ARAMEX, EMS) or customer's choice of air/sea freight.
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
A: We sketch simple solutions for initial discussion. After quotation and order placement, we begin detailed drawings and confirm with the client.
A: Our quality and engineering team responds to quality issues within 72 hours, committed to long-term customer relationships and better service.
A: Yes, we have developed over 1000 sets of molds, some available for direct customer use, plus 20+ years of wire harness expertise with 5000+ products.
